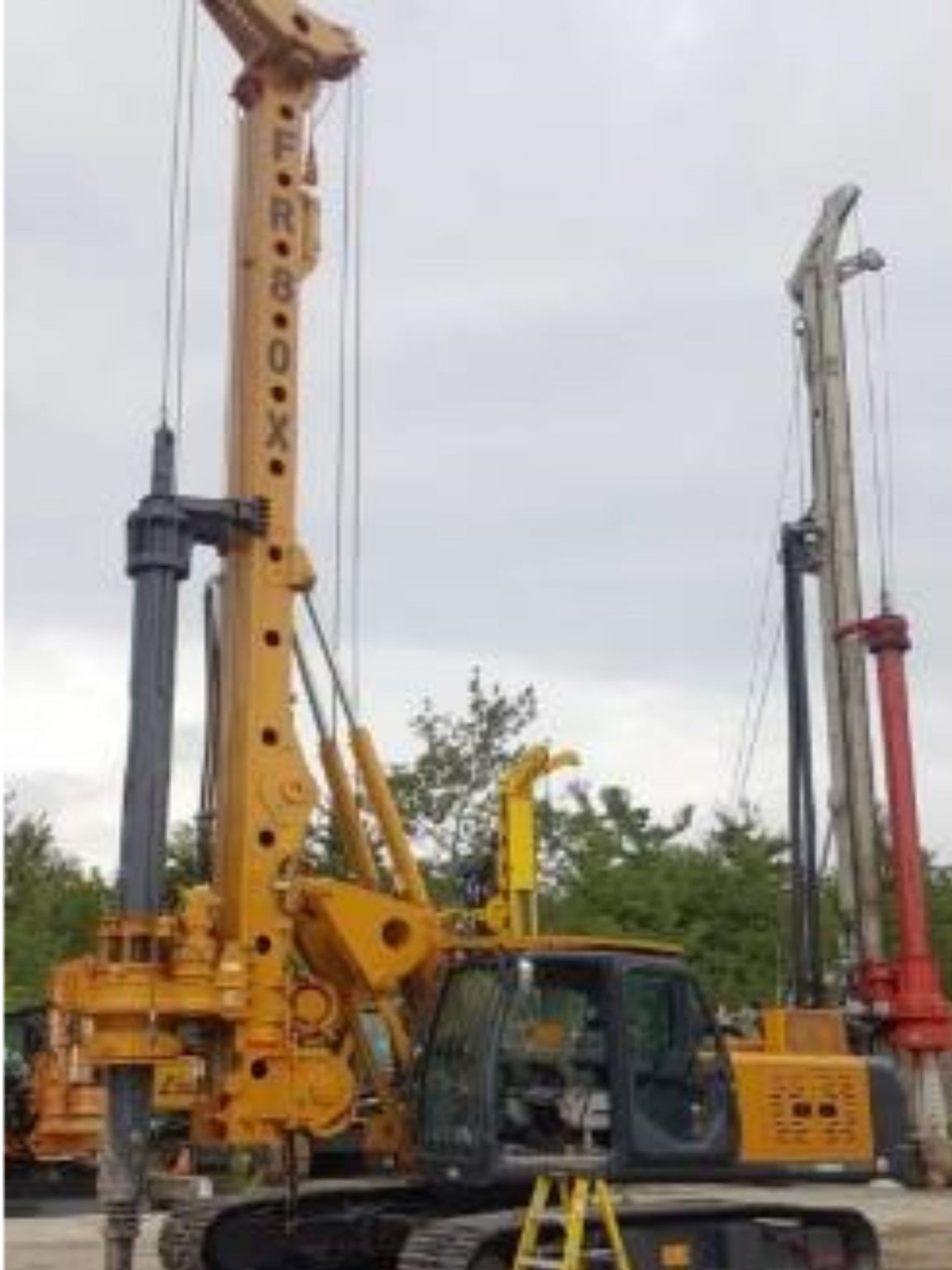

2018 & 2020 XCMG FR80 Stock # ST-138

Rotary Max Torque – 59,004 lbf. ft /80 kN

Engine Emissions Standards – Stage III A / Tier 3

Power Rating – 116 kW (156 BHP)

Rotary Main Winch – 80 kN/17,985 lbf

Auxiliary Winch – 30 kN / 6,745 lbf

Max Drilling Speed 40 rpm

Spin-Off Spped 60 rpm

Max pull up force – 100 kN / 22,480 lbf

Max pull down force – 100 kN/ 22,480 lbf

Max drilling depth – 25 m / 82 ft

Working height of Rig (mm) – 12,401 mm

Working height of Rig (ft) – 40.68ft

Operational Weight (no tools) – 60,775 lbs / 27,500 kg

Transport width – 3,290 mm / 10.8 ft

Transport height – 3,290 mm / 10.8 ft

Transport length – 9,520 mm / 31.2 ft

Transport Weight – 60,775 lbs / 27,500 kgs

Stroke – 7,500 / 3,000 mm

Kelly Bar included in above – 9,458 lbs / 4,280 kgs

Kelly Stub – 130 mm x 130 mm

Cardonic Drive – Included

Contact for further information and pricing.
